SABBATH Aspire 105 R7000 11spd Double

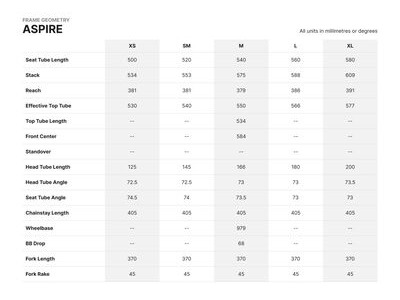

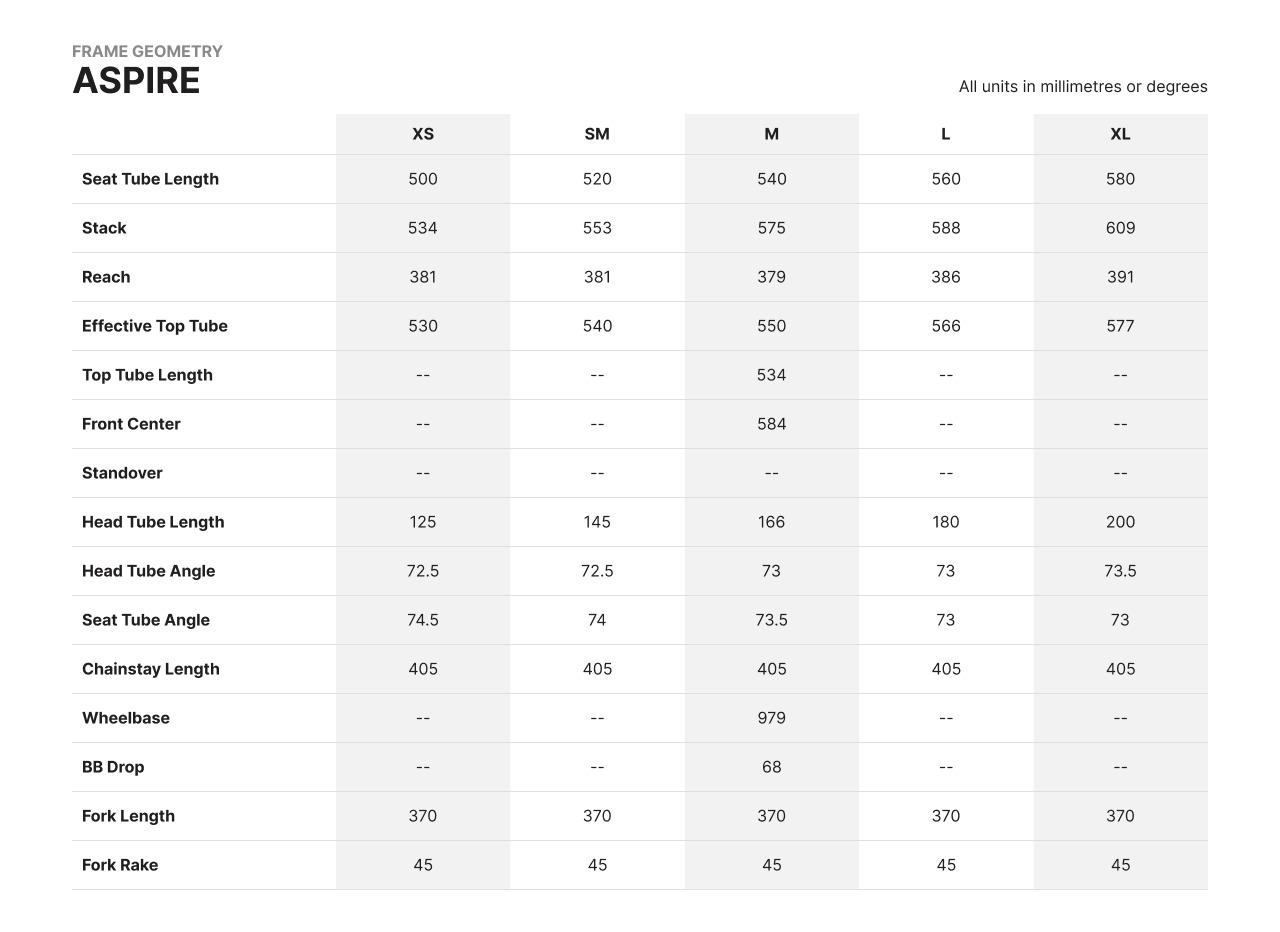

For Frame Geometries, please click on the pictures.
NOTE: This photo is for illustration only and differs from the build specification below.
Frame warranty is 10 years to original owner with invoice or purchase receipt
SIZE | XS | S | M | L | XL |
---|---|---|---|---|---|
Recommended typical rider height | 5'2-5'7 (157-170cm) | 5'6-5'10 (167-177cm) | 5'9-6'0 (175-182cm) | 5'11-6'2 (180-187cm) | 6'1-6'6 (185-198cm) |
Actual seat tube (CT) | 50 | 52 | 54 | 56 | 58 |
Top tube (equivalent) | 53 | 54 | 55 | 56.6 | 57.7 |
Seat angle | 74.5 | 74 | 73.5 | 73 | 73 |
Head angle | 72.5 | 72.5 | 73 | 73 | 73.5 |
Head tube length | 12.5 | 14.5 | 16.6 | 18 | 20 |
Frame Weight | 1.36kg | 1.42kg | 1.46kg | 1.50kg | 1.56kg |
Stack height | 53.4 | 55.3 | 57.5 | 58.8 | 60.9 |
Reach | 38.1 | 38.1 | 37.9 | 38.6 | 39.1 |
Wheel base | 97.3 | 97.9 | 97.9 | 98.9 | 99.5 |
Options | XS S CURRENTLY UNAVAILABLE M L XL |
---|---|
Style | Titanium sportive bike designed for day long comfort and sure footed descending. 3Al 2.5V straight gauge tubeset will still be delivering you through challenging rides in 10 years time. Purist, round section tubes for the timeless traditional titanium aesthetic. |
Frame | 3Al/2.5V Titanium |
Forks | Carbon / Alloy |
Rear Derailleur | Shimano 105 RD-R7000 GS |
Front Derailleur | Shimano 105 FD-R7000 |
Shifters | Shimano 105 ST-R7000 |
Chainset | Shimano 105 FC-R7000 50/34 (choice of crank length) |
Bottom Bracket | Shimano BB-R60 |
Chain | KMC X11-93 |
Freewheel | Shimano 105 CS-R7000 11-32 (other ratios available) |
Headset | FSA Orbit Equipe |
Stem | FSA Omega OS-167/Deda Zero (60-130mm) |
Handlebars | FSA Wing Compact/Deda RHM Zero (38-46cm) |
Front Brake | Shimano 105 BR-R7000 short drop dual pivot |
Rear Brake | Shimano 105 BR-R7000 short drop dual pivot |
Tyres | Schwalbe One 700x25c |
Saddle | Spa Navigator |
Seatpost | FSA SL-281/Deda Zero 1 |
Pedals | None |
Grips | Spa EVA Cork Gel bar tape (black, red or blue) |
Wheelset | Shimano WH-RS100 |
Wheel size | 700c |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
