SABBATH AR1 Disc 11spd Ultegra (R8000) Hydraulic SPECIAL OFFER

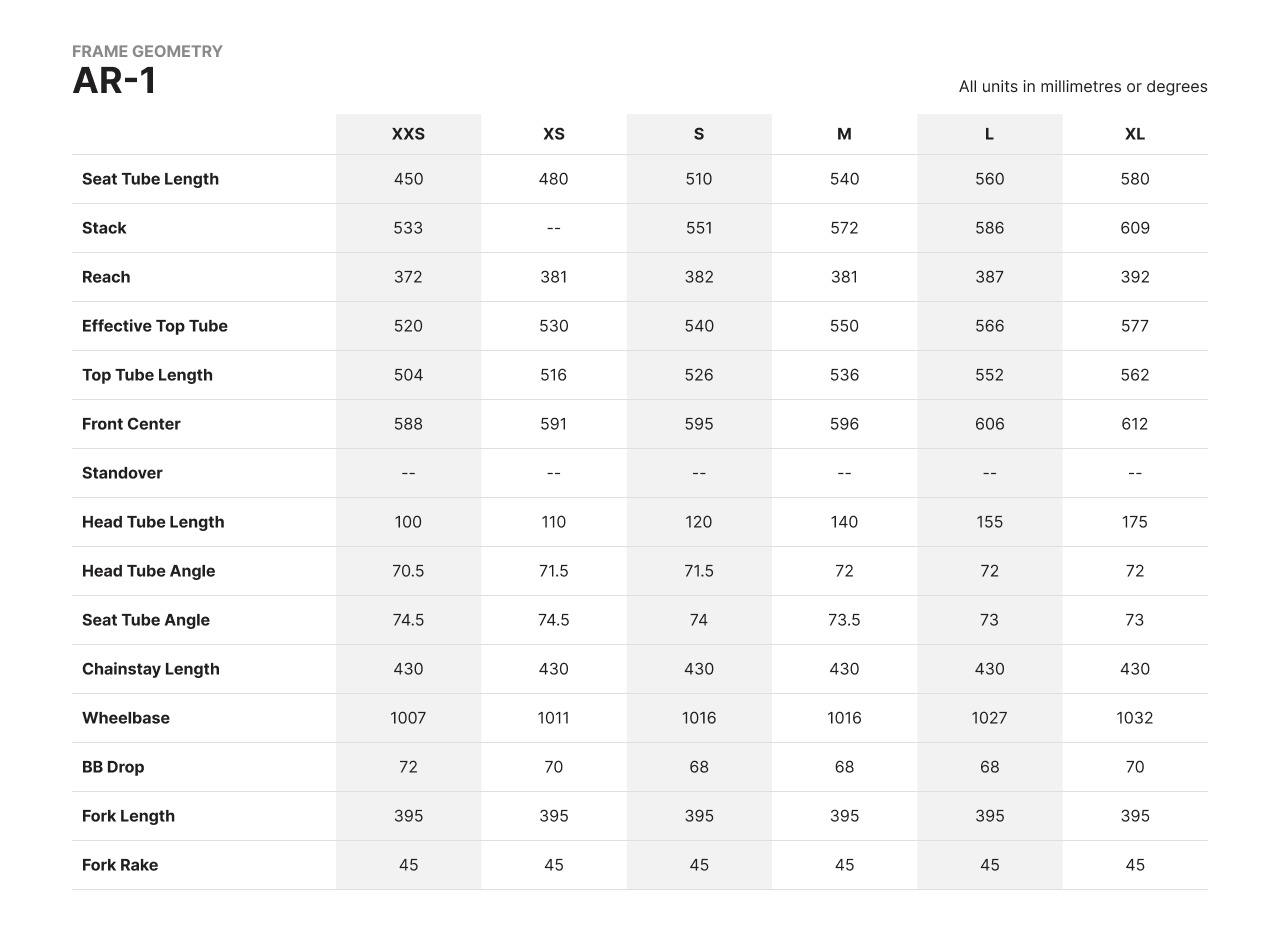

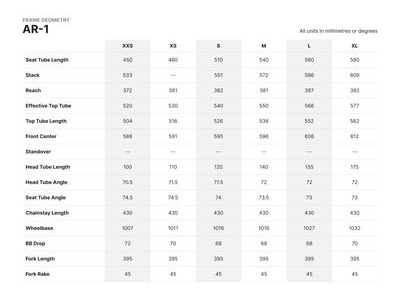

For Frame Geometries, please click on the pictures.
Frame warranty is 10 years to original owner with invoice or purchase receipt
SIZE | XS | S | M | L | XL |
---|---|---|---|---|---|
Recommended typical rider height | 5'2-5'7 (157-170cm) | 5'6-5'10 (167-177cm) | 5'9-6'0 (175-182cm) | 5'11-6'2 (180-187cm) | 6'1-6'6 (185-198cm) |
Actual seat tube (CT) | 50 | 52 | 54 | 56 | 58 |
Top tube (equivalent) | 53 | 54 | 55 | 56.6 | 57.7 |
Seat angle | 74.5 | 74 | 73.5 | 73 | 73 |
Head angle | 71.5 | 71.5 | 72 | 72 | 72.5 |
Head tube length | 11 | 12 | 14 | 15.5 | 17.5 |
Stack height | 54 | 55.1 | 57.2 | 58.6 | 60.9 |
Reach | 38 | 38.2 | 38.1 | 38.7 | 39.2 |
Wheel base | 101.1 | 101.5 | 101.6 | 102.7 | 103.2 |
Options | XXS bright brush XS bright brush S bright brush M bright brush L bright brush XL bright brush |
---|---|
Style | Sabbath AR-1 Audax riders looking for all year round riding bike. The convenience and flexibility of a bike that ticks so many boxes. Now available with a Shimano Ultegra 11spd groupset. |
Frame | Bright Brush |
Forks | Carbon-Alloy QR, or Full Carbon QR (+£40) |
Rear Derailleur | Shimano Ultegra RD-R8000 GS |
Front Derailleur | Shimano Ultegra FD-R8000 (with FC-R8000, Spa TD-2) Shimano GRX FD-RX810 (with FC-RX600) |
Shifters | Shimano Ultegra ST-R8020 (Hydraulic) |
Chainset | Shimano Ultegra FC-R8000 50/34, or Shimano GRX FC-RX600 46/30. Spa TD-2 Super Compact options available (44/28, 42/26, 40/24) Choice of crank lengths available |
Bottom Bracket | Shimano BB-R60 (with FC-R8000 & FC-RX600) First Components DX-30 (with Spa TD-2) |
Chain | KMC X11-93 |
Freewheel | Shimano Ultegra CS-R8000 11-28, 11-30 or 11-32; or CS-HG800 11-34 Shimano Deore XT CS-M8000 11-40 with Derailleur extender available (+£40) (not in conjunction with 50/34 chainset) |
Headset | FSA Orbit ITA |
Stem | FSA Omega OS-167 (available lengths 60-130mm) |
Handlebars | FSA Wing Compact or FSA Adventure Flare (available widths 38-46cm) |
Front Brake | Shimano BR-RS785 (Hydraulic) |
Rear Brake | Shimano BR-RS785 (Hydraulic) |
Brake Levers | N/A |
Rims | Kinlin XR-26RTS Black, or Kinlin XR-22RTS Black for our lighter riders |
Front Hub | Bitex BX106F Centre-Lock Black; 24, 28 or 32h |
Rear Hub | Bitex BX106R Centre-Lock Black; 28, 32 or 36h |
Spokes | Sapim Race/Leader Stainless (Silver or Black) Sapim CX-Ray Black (with Alloy Nipples) +£60 |
Tyres | Schwalbe One 700 x 28C or 30C. Tubeless options available (+£25 plus tyre upgrade costs) |
Saddle | Brooks Cambium C17 All-Weather |
Seatpost | FSA SL-281 31.6mm, or USE Duro Titanium (+£90) |
Grips | Spa Cork EVA Gel Black (other colours available) |
Miscellaneous | SKS CAB Mudguards |
Wheelset | Handbuilt |
Wheel size | 700c |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
