SABBATH Silk Road 105 R7000 11spd Double

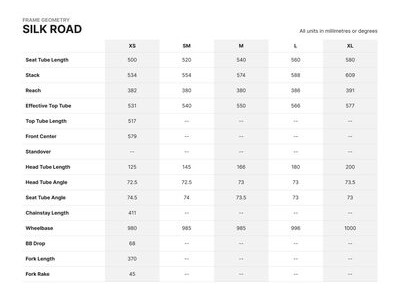

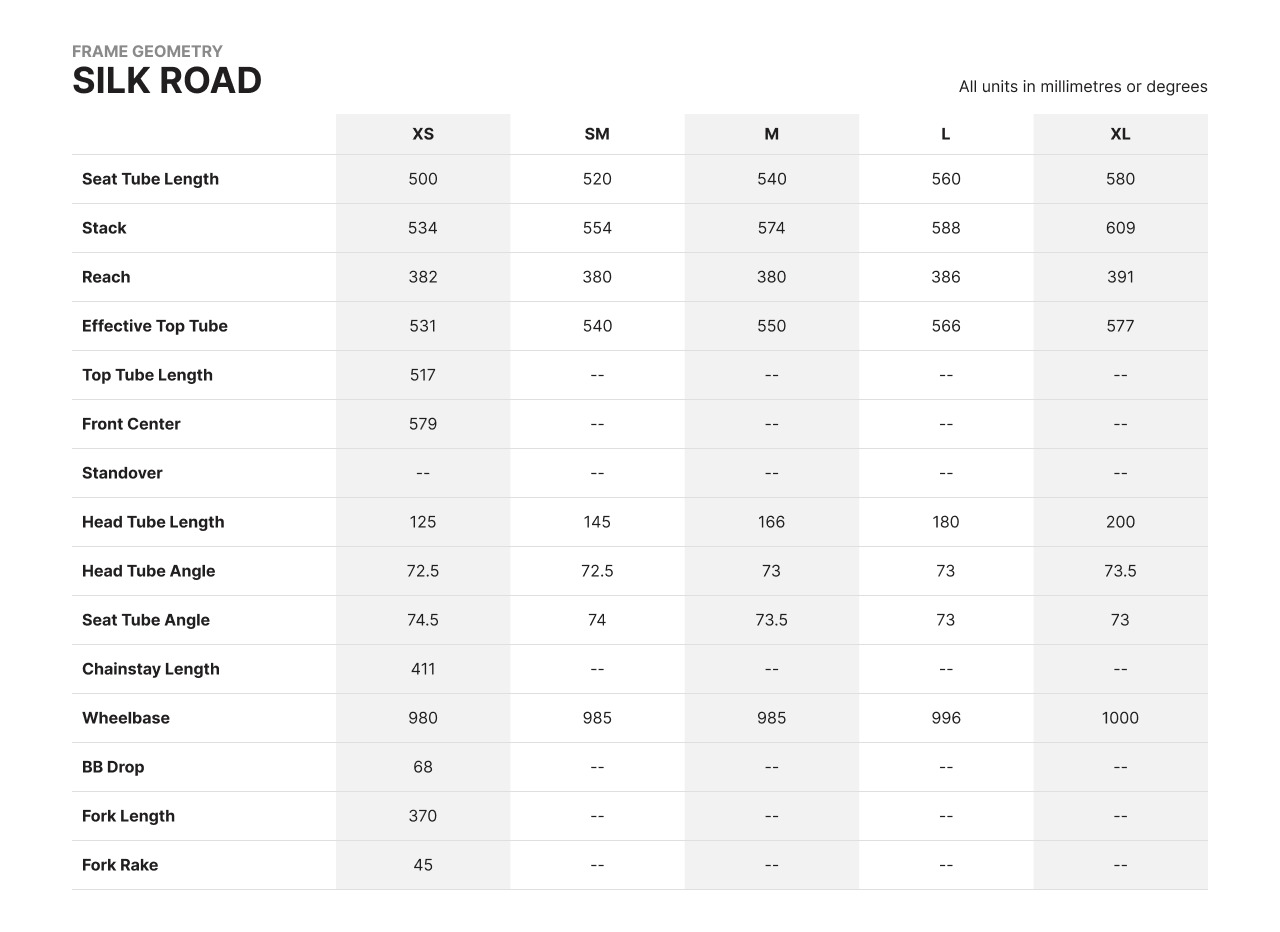

For Frame Geometries, please click on the pictures.
Frame warranty is 10 years to original owner with invoice or purchase receipt
SIZE | XS | S | M | L | XL |
---|---|---|---|---|---|
Recommended typical rider height | 5'2-5'7 (157-170cm) | 5'6-5'10 (167-177cm) | 5'9-6'0 (175-182cm) | 5'11-6'2 (180-187cm) | 6'1-6'6 (185-198cm) |
Actual seat tube (CT) | 50 | 52 | 54 | 56 | 58 |
Top tube (equivalent) | 53 | 54 | 55 | 56.6 | 57.7 |
Seat angle | 74.5 | 74 | 73.5 | 73 | 73 |
Head angle | 72.5 | 72.5 | 73 | 73 | 73.5 |
Head tube length | 12.5 | 14.5 | 16.5 | 18 | 20 |
Frame Weight | 1.3kg | 1.35kg | 1.4kg | 1.5kg | 1.55kg |
Stack height | 53.4 | 55.4 | 57.4 | 58.8 | 60.9 |
Reach | 38.2 | 38 | 38 | 38.6 | 39.1 |
Wheel base | 98 | 98.5 | 98.5 | 99.6 | 100 |
Options | XS/50cm Sml/52cm Med/54cm Lge/56cm XL/58cm |
---|---|
Style | Titanium Sportive bike. As tested in cycling weekly - "we have ridden titanium bikes that cost three times the price but lack the combination of comfort and stiffness" |
Frame | Ti 3Al/2.5V |
Forks | Carbon (with alloy steerer) |
Rear Derailleur | Shimano 105 RD-R7000 GS |
Front Derailleur | Shimano 105 FD-R7000 |
Shifters | Shimano 105 ST-R7000 |
Chainset | Shimano 105 FC-R7000 50/34 (choice of crank length) |
Bottom Bracket | Shimano BB-R60 |
Chain | KMC X11-93 |
Freewheel | Shimano 105 CS-R7000 11-32 (other ratios available) |
Headset | FSA Orbit Equipe |
Stem | FSA OS-167 (60-130mm) |
Handlebars | FSA Wing Compact (38-44cm) |
Front Brake | Shmano 105 BR-R7000 Dual-Pivot Caliper |
Rear Brake | Shmano 105 BR-R7000 Dual-Pivot Caliper |
Tyres | Schwalbe One 700x25c |
Saddle | Spa Navigator |
Seatpost | FSA SL-281 27.2mm |
Grips | Spa EVA Cork Gel Black (colour options available) |
Wheelset | Shimano WH-RS100 |
Wheel size | 700c |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
